Product Details
Place of Origin: JIANGSU
Brand Name: CPA
Certification: CE,ISO
Model Number: CPA-AJ
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: aseptic bag,pp bag,tin can,pet bottle,tetra pak ,glass bottle
Delivery Time: 65-70 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per year
Capacity: |
1-20T/H |
Cleaning: |
CIP Cleaning System |
Control System: |
PLC |
Filtration: |
Multi-stage Filtration |
Fruit Input: |
Fresh Apple |
Juice Output: |
HPP Fresh Juice |
Material: |
Stainless Steel |
Operation: |
Automatic |
Packaging: |
Bottle Or Bag |
Power: |
3KW |
Warranty: |
1 Year |
Kind: |
HPP Juice Line |
Capacity: |
1-20T/H |
Cleaning: |
CIP Cleaning System |
Control System: |
PLC |
Filtration: |
Multi-stage Filtration |
Fruit Input: |
Fresh Apple |
Juice Output: |
HPP Fresh Juice |
Material: |
Stainless Steel |
Operation: |
Automatic |
Packaging: |
Bottle Or Bag |
Power: |
3KW |
Warranty: |
1 Year |
Kind: |
HPP Juice Line |
Industril Turn key HPP Apple Juice Production Line Processing Machine
Brief introduction to the Apple Juice Production Line:
Apple juice Production Line can produce from fresh apple to different kinds of final product. The raw material can be all kinds of pome fruits, including apple, pear, persimmon, fig, etc. And the final product can be clear juice, cloudy juice, NFC juice,HPP juice, juice concentrate, oil, etc. For the package, it can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc. All kinds of juice products are very popular all over the world.
HPP apple juice means high pressure processing juice refers to juice which use a speical preservation method called high-pressure processing ,Hpp is a non thermal sterilization but use high pressure to inactivity bacteria,so to save the juice at a excellent taste we called this HPP apple juice production line ,High-Pressure Processing: The bottled juice is placed in a high-pressure chamber filled with water. The pressure is rapidly increased to a level typically between 400 and 600 MPa (megapascals), which is equivalent to 4,000 to 6,000 bar or 58,000 to 87,000 psi. The pressure is maintained for a specific duration, usually a few minutes to several minutes.
Parameter to the apple juice production line:
1 |
Product Name |
Apple juice production line |
2 |
Processing capacity |
1-50T/H |
3 |
Type |
Turn-key project |
4 |
Final product |
HPP juice,NFC juice,Concentrated juice ,juice beverage according to customer |
5 |
Product brix |
7-12bix or 70brix |
6 |
Warranty |
1 year |
7 |
Voltage |
380V 50Hz/110V 60hz/415V 50Hz |
8 |
Service |
Life-long service |
9 |
Help |
Package design and purchasing |
Features of orange juice machine
1. Flexible configuration to make the line, according to different requirements for the end products, some exact equipments with different functions are flexible chose.
2. According to different investment value and product structure, client can require average, middle level or high level processing equipments.
3. End product with pure flavor, bright color, and high output percentage;
4. Whole line with features as high level automatic, low labour intensity, easy operation, safe function and low operation cost.
5. Whole line adopt sanitary design, can be cleaned thoroughly, with high level sanitation.
6. PLC auto control ,save manpower
Typical Flow chart to apple juice production line:
Raw apple-wash-sort-disinfection-crush and squeeze-filling-HPP sterilization-HPP apple juice
Raw apple-wash-sort-crsh-pre heat-squeeze-enzymatic hydrolysis-filtration-vacuum evaporator-UHT sterilization-aseptic filling-concentrated apple juice
aseptic apple juice-blend-filtration-degass-homogenize-UHT sterilizer-3 in 1 filling system-post pasteurization-dry-label/code/pack-apple juice beverage products
Products that can be made from apples:
Typical package style of apple :
Vedio

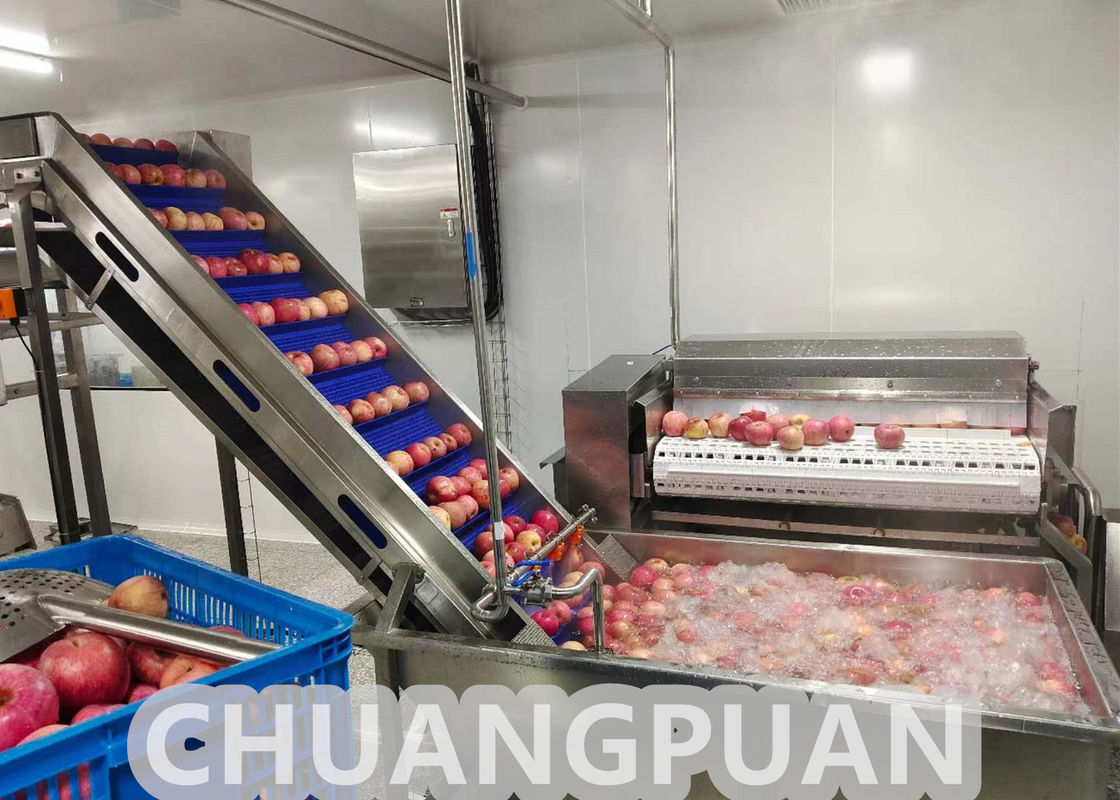

Production site for apple juice production line:
