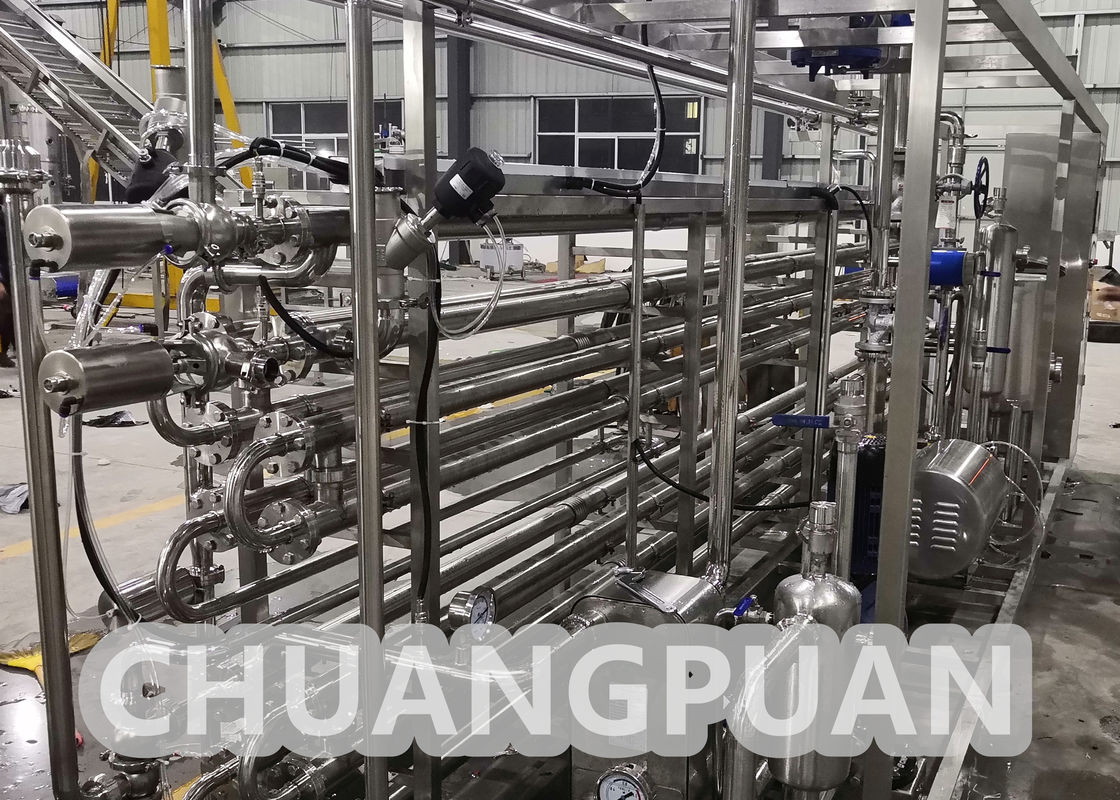

1-10T/H Customized Automatic Juice Milk UHT Sterilizer Industrial

Industrial 1-10T/H Customized Automatic Juice Milk UHT Tubular Sterilizer Machines

Brief introduction to the UHT sterilization machine:

Uses: Suitable for instantaneous ultra-high temperature sterilization of dairy products, fruit juices, tea beverages or similar liquid materials. The filtered materials pass through this equipment to achieve sterilization and cooling and extend the shelf life. According to the different temperature requirements of the user for heating, heat preservation, cooling, etc., the combined system design can be achieved to meet the process requirements, and can be supplemented by a high-precision automatic control system-(intelligent instrument or PLC) and safety measures. Flexible, stable and reliable during operation. At the same time, a heat recovery section has been designed to improve the efficiency of heat recovery, so this is another kind of energy-saving equipment.

Product specifications: 0.5-10T / H, sterilization temperature: 115 ～ 140 ℃, can be customized according to production capacity.

Ultra-high temperature instant sterilization UHT, sterilization temperature: 115-140 ℃, the equipment adopts scientific instant ultra-high temperature treatment method, so that liquid products, vegetable protein drinks, fruit juice drinks, tea and other liquid foods are strictly sterilized, and the sterilization time is short So as to maintain the original nutrition and color flavor of beverage dairy products as much as possible.

Technical features:

1. Continuous production and extremely short sterilization time.

2. Due to the short heating time, high-quality products can be obtained.

3. Due to the ultra-high temperature sterilization, the sterilization effect is particularly good.

4. It is used in series with centrifugal pump or high-pressure homogenizer. It has a wide range of applications and is suitable for sterilization of high-viscosity materials.

5. Since the design of the heat exchanger with cold and hot materials has the economic effect of waste heat utilization, the steam consumption is small.

6. Fully automatic or semi-automatic computer control of the equipment, touch LCD screen operation;

7. PID temperature control system, sterilization temperature is continuously recorded on the recorder in real time;

8. There are no contact points in the tube, no sanitary dead corners, and the product will not stick to the tube;

9. Comes with CIP cleaning, which can be cleaned and disinfected online with aseptic filling machine.

Specifications and models to the UHT sterilization machine:

Structure of UHT sterilization machine:

Typical applicable product of UHT sterilization machine:

Vedio

Package after sterilization machine:

Related machinery :

 Aseptic filling machine:connected with UHT sterilization and produce the product can store at normally temperature for 1-2 years

                             Sachet filling machine connected with sterilizer and do hot filling

                                                       Self stand filling machine

                                                    Tin can filling machine

                                                            Bottle filling machine
